Acrel ADL400 Three Phase Din Rail Energy Meter

Acrel ADL400 three phase din rail energy meter is an intelligent instrument designed mainly for electric energy statistics and management needs of power systems, industrial and mining enterprises, and public facilities. The 3 phase din rail energy meter has the advantages of high precision, small size, and convenient installation.

Three phase din rail energy meter ADL400 can measure all power parameters, with 2~31 sub-harmonic and total harmonic content detection. With RS485 communication interface and optional MODBUS-RTU protocol, the power meter can be widely used in various control systems, SCADA systems, and energy management systems.

  • Full Parameter Measurement

  • High precision

  • Easy Installation

  • Small Volume

Parameters of ADL400 Three Phase Din Rail Energy Meter


technical parameter descriptions
projectperformance parameter
Specification3 phase 3 wires, 3 phase 4 wires
MeasurementVoltageReference voltage3×100V、 3×380V、3×57.7/100V、 3×220/380V
Consumption<10VA(Single phase)
Impedance>2MΩ
Accuracy classError±0.2%
CurrentInput current3×1(6)A, 3×10(80)A
Consumption<1VA Single phase rated current
Accuracy classError±0.2%
PowerActive, reactive, apparent power, error±0.5℅
Frequency45~65Hz,Error±0.2%
MeterEnergyActive energy(Accuracy class: 0.5)
 reactive energy(Accuracy class 2)
Clock≤0.5s/d
Digit signalEnergy pulse output1 active photocoupler output
pulseWidth of pulse80±20ms
Pulse constant400imp/kWh,10000imp/kWh(Correspond with the basic current)
communicationInterface and communication protocolRS485口:Modbus RTU
RS485:Modbus RTU
Range of communication addressModbus RTU:1~ 247;
Baud rate1200bps~19200bps
environmentworking temperature-25℃~+55℃
Relative humidity≤95℅(No condensation)


Video of Three Phase DIn Rail Energy Meter ADL400

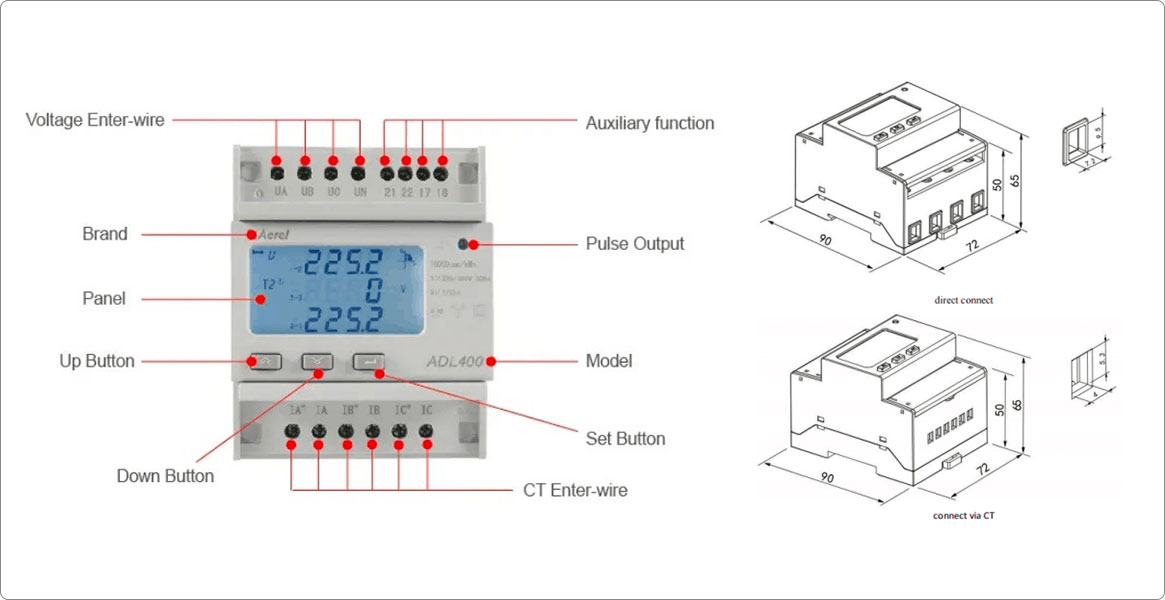

Diagram of ADL400 Three Phase Din Rail Energy Meter

ADL400's three-phase energy meter is divided into direct current access and secondary current access. The wiring torque for direct access should be 3-4N·m, and the wiring torque for ct access should be 1.5-2N·m. The overall size of the meter is L*W*H: 90*72*65mm, the front panel has the corresponding silkscreen, including voltage input line, current input line, auxiliary function port number, LOGO, LCD display, buttons, etc. It can measure all power parameters, with 2~31 sub-harmonic and total harmonic content detection. With RS485 communication interface and optional MODBUS-RTU protocol, the power meter can be widely used in various control systems, SCADA systems, and energy management systems.


Diagram of ADL400 Three Phase Din Rail Energy Meter


Products Overview of ADL400 Three Phase Din Rail Energy Meter

1. Main Functions



2. Panel Overview




3. Main Parameters




4. Main Features




Diverse Electric Parameters Measurement
● kWh (3-phase positive Kilowatt-hours)
● kVarh (Kilovar-hours)
● Harmonic (2~31st voltage¤t)---Standard
● U (3-phase Voltage)
● I (3-phase Current)
● P (Power)
● Q (Reactive power)
● F (Frequency)
● S (Apparent power)
● PF (Power factor)


Multi-rate/Flexible Tariff
● 4 Time zone
● 4 Tariff rate (Spike, Peak, Flat, Valley)
● 2 Time period list
● 14 Time period by day
● Data Frozen (last 48 months or last 90 days)
● Max demand and occurrence time


HMI for Common Configuration
● PT or CT ratio
● Wiring methods (3P4W or 3P3W)
● Back linght time
● RS485 (MODBUS-RTU) communication setting



Wiring Instruction of ADL400 Three Phase Din Rail Energy Meter

a. Direct Connect Type


PIN/Terminal Overview of ADL400 (Direct Connect Type)



Power Wiring: 3-phase 4-wire via direct connect



Power Wiring: 3-phase 3-wire via direct connect




RS485 Wired Communication of ADL400 (Direct Connect Type) with IoT Gateway



b. CT Operated Type



PIN/Terminal Overview of ADL400 (CT Operated Type)



Power Wiring: 3-phase 4-wire CT operated



Power Wiring: 3-phase 3-wire CT operated



RS485 Wired Communication of ADL400 (CT Operated Type) with IoT Gateway



DIN Rail Installation of ADL400 Three Phase Din Rail Energy Meter



Application of ADL400 Three Phase Din Rail Energy Meter


Benefits of ADL400 Three Phase Din Rail Energy Meter

  • High precision, CE and MID certification

  • Small size, light weight, easy to install

  • Diverse functions, full electric parameter measurement

  • Can realize wireless communication with the gateway module

Use of ADL400 Three Phase Din Rail Energy Meter

  • Manage the electric demand of industrial and mining enterprises

  • Calculate the electricity consumption of the power supply system

  • Itemized measurement of electric energy in government agencies

  • Measurement of electrical energy in large public buildings


Dimension&Packaging of ADL400 Three Phase Din Rail Energy Meter

Outline Dimension


Dimension of ADL400 (Current Input via Direct Connect)




Dimension of ADL400 (Current Input via CTs)


About Packagement

Packaging Overview

(Minimum)



Packing Dimension and Weight

(Minimum)

Minimum Package Contain 1 pcs Product
Dimension: 170mm*150mm*130mm

Total G.W. (1 pcs)

0.66 KG

Packing Dimension and Weight

(Large)

Large Package Contain 36 pcs Products
Dimension: 540mm*480mm*280mm

Total G.W. (36 pcs)

10.09 KG

Average

Lead Time

Manufacturing: 3~4 days
(If paired with system need extra 1~2 days for adjustment)

Shippment: 8~9 days

(World Wide Shipment)

Product

HS Code

9028301400

Country of Origin

China



FAQ of ADL400 Three Phase Din Rail Energy Meter

Q: What's the difference of current input via direct connect or via CTs?

A: Normally, for 3-phase loads with rated current below 80A AC, we will use model of ADL400 whose current input is via direct connect. Specs of “Rated Current: 10(80)A AC” was aimed for this model of ADL400 (current input via direct connect). 10 means basic current is 10A AC, 80 means rated current input is 80A AC.

And for 3-phase loads with rated current over 80A AC, we will use model of ADL400 whose current input is via CTs (usually paired with -/5A CTs whose secondary current output is with 5A AC rated current output). Specs of “Rated Current: 1(6)A AC” was aimed for this model of ADL400 (current input via CTs). 1 means basic current is 1A AC, 6 means max current input is 6A AC.


Q: Do your company also have paired CTs for ADL400?

A: Usually, we will recommend our user to use split-core CTs called AKH-0.66/K K-φ Series or solid-core CTs called AKH-0.66/I Series to the paired with ADL400 (current input via CTs)


Q: How can I set the CT or PT ratio of ADL400?

A: Current ratio of ADL400 could be set by using the keypads on ADL400 and following the instruction of ADL400 manual. Also, setting need to be according to the CTs or PTs ratio which were paired with ADL400. For example, if the current input is via 250A/5A CTs, the CT ratio on ADL400 should be set to 250/5=50. And if the voltage input is via direct connect, PT ratio on ADL400 should be set to 1. When the problem hasn’t been solved, please contact us for help.


Q: Could ADL400 be used in IoT Energy Monitoring System for factory or building?

A: ADL400 has standard RS485 interface and MODBUS-RTU communication protocol which allow it to be integrate with our IoT Energy Monitor Solution that can enable our users to remotely check all the data collect by energy meters like ADL400 on their mobile phone or PC. For more information, please Contact us or check in IoT Energy Monitoring Solution Introduction.


Q: What is Multi-rate/tariff function? How does it work?

A: First,multi-rate/tariff functio
Energy meter with this function can measure the kwh data and assign them to several time duration in a day and put a label of spike/peak/flat/valley kwh on them respectively. And if such energy meter was connected to the billing system by using a IoT gateway, it can send the kwh data of different time duration which was with the label of spike/peak/flat/valley kwh to the billing system for calculating the electricity bill of different time duration in a day.


For example, the electricity price of spike kwh is 5 USD/1 kwh, and time duration of from 9:00 am to 11:30 am was labeled as spike kwh.

Then, if energy meter record 3 kwh used in total during 9:00 am to 11:30 am, it will send the data of 3 kwh with the label of spike kwh to the billing system, and the system calculate the electricity cost of 3x5=15USD in total from 9:00 am to 11:30 am.
