Solutions
Products

Energy Efficiency Management System

Application

Energy Efficiency Management System Power Sensor


Structure

Energy Efficiency Management System Power Monitoring Device


Main Functions

  • Platform Overview

    Energy Efficiency Management System Power Monitor


  • Remote Data Monitoring

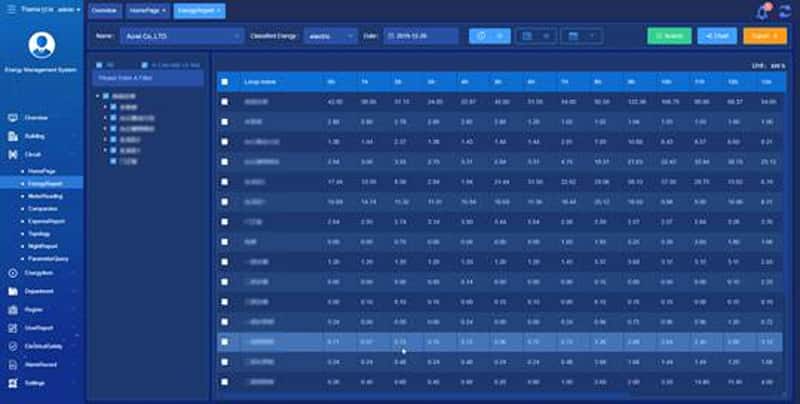

  • Energy Report



  • Historical record and report



  • Energy Efficiency Analysis





6) Web/APP

Energy Efficiency Management System Energy Management Solutions


Product Selection

Application

Type

Functions

APM810 Power Sensor

High voltage or Low voltage circuit

APM810

  1. True RMS Measurements

  2. THD with 63rd Harmonics

  3. K-Factor and Crest Factor

  4. Unbalance & Phase Angles

  5. Demands and Multi-Tariff energy

  6. Max/Min Log with Timestamp

AMC96L-E4/KC Power Monitoring Device

Power cabinet

AMC96L-E4/KC

  1. True RMS Measurements

  2. THD with 2-31st Harmonics

  3. Max/Min Log with Timestamp

  4. Internal Optional 4DI&2DO or 2DI&2DO&2AO

  5. Standard one Energy Pulse Output


ADW400 Power Monitor

Power cabinet

ADW400

  1. Measurement: Maximum 4 circuits 3 phase U、I、P、Q、S、PF、kWh、kvarh

  2. 3×220/380V,3*380V,3*57.7/100V,3*100V

  3. 3×1(6)A,3×20(100)A,3×80(400)A,3×120(600)A

  4. Communication: RS485 or LoRa

ADL3000-E Power Monitoring Unit

Power cabinet

Lighting cabinet

ADL3000-E

  1. AC3×220/380V,3×380V,3×57.7/100V，3×100V

  2. 3×1(6)A,3×10(80)A

  3. U、I、P、Q、S、PF、kWh、kvarh

  4. RS485(MODBUS-RTU)

  5. LCD display

  6. Frozen data

  7. 2-31st  Harmonics

  8. kWh Class 0.5S,kVarh Class 2

ADL400 Power Quality Monitoring Devices

Power cabinet

Lighting cabinet

ADL400

  1. AC220V

  2. 3×1(6)A,3×10(80)A

  3. RS485(MODBUS-RTU)

  4. Set parameters

  5. LCD display

  6. kWh Class 0.5

  7. DIN 35 mm

ADL100-ET Energy Management

Lighting cabinet

ADL100-ET

  1. AC220V

  2. 10（60）A，20（100）A

  3. RS485(MODBUS-RTU)

  4. Set parameters

  5. LCD display

  6. kWh Class 1

  7. DIN 35 mm

ADL200 Energy Management System

Lighting cabinet

ADL200

  1. AC220V

  2. 3×10(80)A

  3. RS485(MODBUS-RTU)

  4. Set parameters

  5. LCD display

  6. kWh Class 1

  7. DIN 35 mm

ADL10-E Energy Management Solutions

Lighting cabinet

ADL10-E

  1. AC 220V

  2. 10（60）A

  3. RS485，MODBUS-RTU

  4. LCD display

  5. kWh Class 1，Kvarh Class 2

  6. U、I、P、Q、S、PF、kWh、kvarh

  7. DIN 35mm

ANet Series Power Sensor

Gateway

ANet series

  1. Support Modbus-RTU, Modbus-TCP, DLT645, IEC103, CJT188 device

  2. Support HTTP(s) XML and JSON forwarding format

  3. Max 1000 data points,max 64 devices

  4. 1 GPRS for data transmit（2G/3G/4G) (Optional)

  5. Build-in SQL database

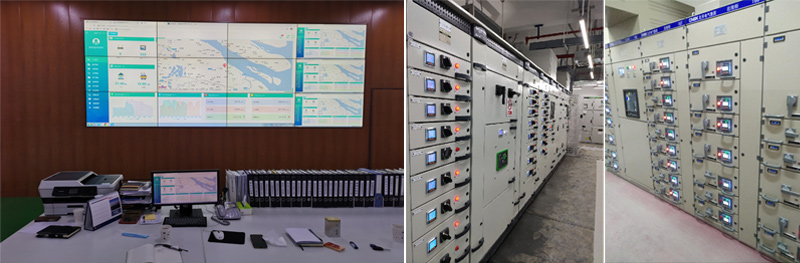

Photos on site
