What is a IOT energy meter?

It is a meter that can measure electrical parameters and realize wireless communication.

How does a IOT energy meter work?

The meter upload the data of measurement to the IOT platform through wireless comunication like WIFI/4G.

How to choose which type IOT energy meter?

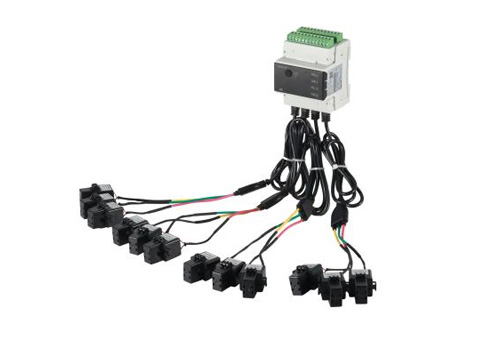

ADW2XX can measure 4 channels three phase energy meter, while ADW300 can directly upload data.

Why we recommend use iot energy meter?

IOT energy meter can connect to the iot platfom, which will let customer convient to monitor and management.

Wifi Power/Energy Meter, Iot Based Electricity Energy Meter, Lorawan Smart Meter



Acrel ADW series IOT energy meter compared with smart energy meter has the biggest advantage is that it can be controlled by wireless communication and combined with software system to facilitate users to monitor, copy and manage electricity consumption. It can be flexibly installed in the distribution box to realize energy metering, statistics and analysis of different areas and different loads.

Products

ADW Series IOT Power Meter For Sale

wireless communcation, multi function optional, din rail easily mounted, able to connect IOT paltfrom.

ADW Series IOT Power Meter Datasheet

technical parameter		ADW2XX	ADW300
Auxiliary power	Voltage	AC/DC 85～265V	AC 85~265V
Auxiliary power	Power consumption	≤10VA	<2W
Voltage input	Rated voltage	AC 3×220V/380V	3×57.7/100V，3×220/380V，3×380/660V，3×100V, 3×380V，3 ×660V
Voltage input	Reference frequency	45～65Hz	50Hz
Current input	Input Current	AC 5A、100A、400A、600A, (External opening transformer)	3×1(6)A,3×1(6)A(ADW300W), 3×20(100)A(ADW300W)
Current input	Starting current	/	1‰ Ib (Class 0.5S)，4‰ Ib (Class 1)
Measuring performance	measurement accuracy	Frequency 0.05Hz, voltage and current Class 0.5, active electric energy Class 1, reactive electric energy Class 2, 2-31 times harmonic accuracy: ± 1%	Class 0.5S(ADW300)，Class 1(ADW300W) Temperature:±2℃
Pulse	Pulse output	Output mode: optocoupler pulse with open collector,	/
	Pulse Width	80±20ms	80±20ms
	Pulse constant	able to set	6400imp/kWh , 400imp/kWh
Switch	Switch input	2+12DI	2DI
Switch	Switch output	2+4DO	2DO
Communication	wireless	LoRa,2G,NB,4G	LoRa,2G,NB,4G
	Infrared interface	/	The constant baud rate is 1200
	RS485 interface	RS485(A、B)	RS485(A、B)
	Connection mode	RJ45	Shielded twisted pair conductors
	protocol	MODBUS-RTU	MODBUS-RTU
Surroundings	Operating temperature	-20℃～+60℃	-20℃~55℃
	Storage temperature	-40℃～+70℃	-40℃~70℃
	humidity	≤95% No condensation	≤95% (No condensation)
	altitude	≤2500m	<2000m
	electromagnetic compatibility	Better than grade 3	/

Functions	ADW2XX	ADW300
Display mode	LCD display optional	LCD
Energy measurement	Positive and negative energy,31 days four quadrant and multi rate electric energy freezing, Four quadrant electric energy,12-month multi rate electric energy	Active kWh(positive and negative), quadrant reactivepower energy
Electrical measurement	U、I、P、Q、S、PF、F	U、I、P、Q、S、PF、F
Harmonic function	total Harmonic and 2-31 Fractional harmonics	THDv、Harmonic on 2nd-31st
Three-phase unbalance degree	Voltage/Current Phase Angle、Voltage/Current Degree of unbalance	Voltage unbalance,current unbalance
Temperature measurement	12 channel external NTC temperature	Temperature of A/B/C/N(Alternate configuration:T)
leakage current	4 channel residual current measurement	1 channel residual current measurement
DI/DO	Standard:2DI/2DO 12DI/4DO with MK module	4DI,2DO(Alternate configuration.K)
External current transformer	External Current transformer	External open type current transformer(Alternate configuration: W)
Electrical parameter Alarm	over-voltage, over-current, phase failure, DI linkage and other alarm output	Undervoltage, undercurrent,overcurrent,underload,etc
Communication	RJ45 interface	Infrared communication
	RS485 Standard communication	RS485(Alternate configuration. C)
	(AWT100-LoRa) LoRa Wireless Communication	Wireless transmission on 470MHz(Alternate configuration: LR)
	(AWT100-2G) 2G Wireless Communication	GPRS(Alternate configuration:2G)
	(AWT100-NB) NB Wireless Communication	NB-IOT(Alternate configuration: NB)
	(AWT100-4G) 4G Wireless Communication	4G(Alternate configuration.4G)
	(AWT100-WIFI) WIFI Wireless Communication	WIFI(Alternate configuration. WIFI)

How Does A DW Series IOT Power Meter Work?

Acrel ADW Series IOT Energy Meter has two solutions to work. First, it can be connected to the gateway through RS485, and then the gateway uploads the data in the meter to the IOT cloud platform through 4G signal. The client can monitor the data in real time through PC or mobile APP. Solution 2 is ADW300 directly upload the data in the table to the IOT platform through 4G/WIFI signals, this solution does not need to pass through the gateway, more convenient installation.

ADW Series IOT Power Meter FAQs



What is a IOT energy meter?


It is a meter that can measure electrical parameters and realize wireless communication.


How does a IOT energy meter work?


The meter upload the data of measurement to the IOT platform through wireless comunication like WIFI/4G.


How to choose which type IOT energy meter?


ADW2XX can measure 4 channels three phase energy meter, while ADW300 can directly upload data.


Why we recommend use iot energy meter?


IOT energy meter can connect to the iot platfom, which will let customer convient to monitor and management.
