Acrel ADW300 Wireless Energy Meter

Name: ADW300 Wireless Energy Meter
Brand: Jiangsu Acrel Electrical Manufacturing Co., LTD.

Acrel ADW300 wireless smart energy meter is mainly used to measure three-phase active electric energy of the low-voltage networks. With RS485 communication and 470MHz wireless communication function, our ADW300 4G smart energy meter is convenient for users to monitor, collect and manage electricity consumption.

Acrel ADW300 3-phase wireless smart energy meter moniter can be flexibly installed in the distribution box to realize the measurement, statistics and analysis of sub-item electric energy of different regions and different loads.



Measurement: 3 Phase voltage, current, power, power factor, etc.


Communication: RS485, LoRa, 4G, WIFI, LoRaWan


Max demand measure


Accuracy: Class 1.0

Products

Acrel ADW300 Wireless Smart Energy Meter Parameters

Voltage input	Rated voltage	3×57.7/100V,3×220/380V,3×380/660V,3×100V,3×380V,3×660V
	Referencefrequency	50Hz
	Consumption	<0.5VA (Each phase)
Current input	Input current	3×1(6)A;3×1(6)A(ADW300w),3×20(100A(ADW300W)
	Start current	1%. Ib(Class 0.5S),4% Ib(Class 1)
	Consumption	<1VA (Each phase)
Auxiliary power	Power Supply	AC 85~265V
Auxiliary power	Power consumption	<2W
Measurement performance	Standard	IEC62053-22:2003,IEC62053-21:2003
	Active energyaccuracy	Class 0.5S (ADW300),Class 1(ADW300W)
	Temperatureaccuracy	±2℃
Pulse	Width of pulse	80±20ms
Pulse	Pulse constant	6400imp/kWh,400imp/kWh
Communication	Wireless	Transmission on 470MHz and maximum distance in open space is Ikm;2G;NB;4G
	Infrared interface	The constant baud rate is 1200
	RS485 interface	RS485(A、B)
	Connection mode	Shielded twisted pair conductors
	protocol	MODBUS-RTU

Functions
Display mode	LCD
Energy measurement	Active kWh(positive and negative),quadrant reactivepower energy
Electrical measurement	U、I、P、Q、S、PF、F
Harmonic function	THDv、Harmonic on 2nd-31st
Three-phase unbalance degree	Voltage unbalance,current unbalance
Temperature measurement	Temperature of A/B/C/N(Alternate configuration:T)
leakage current	1 channel residual current measurement
DI/DO	4DI,2DO(Alternate configuration.K)
External current transformer	External open type current transformer(Alternate configuration:W)
Electrical parameter Alarm	Undervoltage, undercurrent,overcurrent,underload,etc
Communication	Infrared communication
	RS485(Alternate configuration.C)
	Wireless transmission on 470MHz(Alternate configuration: LR)
	GPRS(Alternate configuration:2G)
	NB-IOT(Alternate configuration:NB)
	4G(Alternate configuration.4G)
	WIFI(Alternate configuration.WIFI)

Acrel ADW300 Wireless Smart Energy Meter Monitor Video

Acrel ADW300 3-Phase Wireless Energy Meter Monitor Diagram

There are four modes of connection like 3-phase 4-wire (current connected via CT), 3-phase 3-wire (current connected via CT), 3-phase 4-wire (current connected via PT and CT) and 3-phase -wire (current connected via PT and CT). Two-way Digital output and four-way Digital input. Record the historical data on electricity consumption covering the previous 12 months. Acrel ADW300 series supports LORA, 2G, NB, and 4G communications.

ADW300 Wireless Energy Meter Smart Power Meter Monitor

Acrel ADW300 3-Phase Wireless Energy Meter Features

Features

Demonstration

Multiple Communication Methods
● 4G LTE
● NB-IoT
● WiFi (2.4GHz&5GHz)
● LoRa/LoRaWAN
● RS485 (MODBUS-RTU)
● Paired with IoT Energy Monitoring System

Acrel ADW300 3-Phase Wireless Energy Meter in IoT Applications

Power Quality Analysis
● Total Harmonic
● 2nd~31st Harmonic
● Voltage Unbalance
● Current Unbalance

Wireless Power Consumption Meter Power Quality Analysis

Expanded Function
● 2-channel DO (Digital Ouput)
● 4-channel DI (Digital Input)
● 4-channel Cable Temperature Monitoring
● 1-channel Residual Current Measurement

Wireless Smart Energy Meter Expanded Function

Alarm Function
● Over/Under Current
● Over/Under Voltage
● Over/Under Power
● Phase Loss

Acrel Adw300 4g Energy Meter Alarm Function

Acrel Adw300 3-Phase Wireless Energy Meter Features

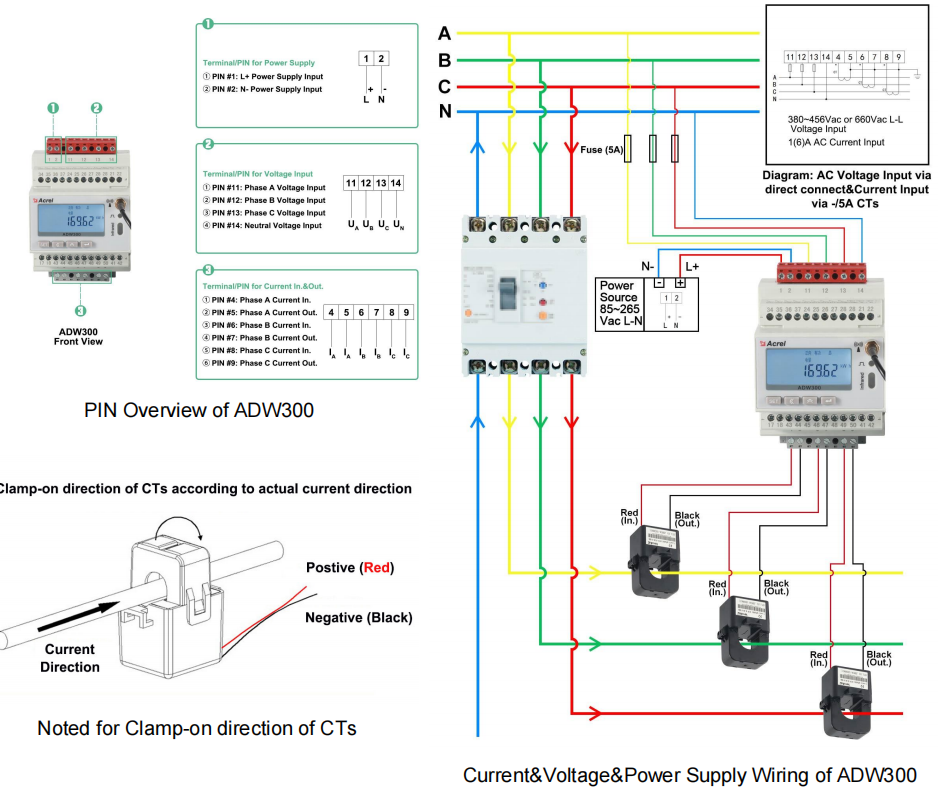

Acrel ADW300 3-Phase 4G Wireless Energy Meter Wiring

acrel adw300w 4g smart meter

Acrel ADW300 3-Phase 4G Wireless Power Consumption Meter Pin Overview

Acrel ADW300 3-Phase Wireless Smart Energy Meter Dimensions

Acrel ADW300 3-Phase Wireless Energy Meter Monitor Packaging

Packaging Overview

(Minimum)

Acrel ADW300 3-Phase Wireless Energy Meter Monitor Packaging

Packing Dimension and Weight

(Minimum)

Minimum Package Contain 1 pcs Products

Dimension: 170mm*150mm*130mm

Total N.W. (1 pcs)

0.233 KG

Packing Dimension and Weight

(Large)

Large Package Contain 36 pcs Products

Dimension: 540mm*530mm*490mm

Total N.W. (48 pcs)

10 KG

Average

Lead Time

Manufacturing: 3~4 days

(If paired with system need extra 1~2 days for adjustment)

Shippment: 8~9 days

(World Wide Shipment)

Product

HS Code

9028301400

Country of Origin

China

3-Phase Smart Meter Installation & Use

Step ①: Correctly install&wire meters

1. 35mm DIN-rail installation

2. 3-phase 4-wire or 3-phase 3-wire methods

3. Voltage signal input via direct connect or PTs

4. Current signal input via CTs or Rogowski Coils

5. Power supplied by 85~265Vac L-N power source

3-Phase Smart Meter Installation

Step ②: Download&Register IoT APP

1. Download of IoT EMS APP

2. Register your account with 3-month Free Trial

3. Or contact us to get Test Account

Download&Register IoT App For Acrel ADW300 Energy Meter

Step ③: Add Meters to your Account

1. Acrel ADW300 smart energy Meters are recognized by a unique SN code

2. Scan QR code to add the wireless power consumption meter to your account

3. Edit CT&PT ratio according to paired CT&PT

4. If voltage input via direct connect, PT ratio set to 1 (Actual Power System Voltage = Voltage Signal Input of Meter)

5. If current input via 250A/5A CTs for example, CT ratio set to 50 (250÷5=50)

Add Acrel Energy Meter To Your Account

Step ④: Start your 3-month Free Trial

1. After 3 months, host service&buy-out service will be available for account renewal.

2. Contact us for more information about system charge item&meter quotation.

3. Before we send you the quotation, we will set a solution according to your request.

4. Provide full technical support for installing Acrel ADW300 3-phase wireless energy monitors and connecting meters to our system.

Start your 3-month Free Trial of Acrel ADW300

ADW300 Wireless Energy Monitor For Smart Meters Benefits

4G, LoRa, WIFI wireless communication
Small volume, easy installation
Switch, temperature function optional
External open-type current transformer

ADW300 Wireless Power Meter Monitor Applications

Remote meter reading of the power-distribution box
Matched with IoT energy management system
This wireless power consumption meter can connect to power operation and maintenance cloud platform
Acrel ADW300 smart meter wireless series is suitable for electricity monitoring of reconstruction projects

Acrel ADW300w 3-Phase Wireless Energy Monitor FAQs



What's the biggest advantage of ADW300?


ADW300 has its built-in wireless communication module which allow it to realize 4G LTE, WiFi, NB-IoT, LoRa upstream communication without using extra IoT gateways. For the application scenarios when the meters can't be of centralized installation, ADW300 will usually be the best option for monitor 3-phase circuits that were far from each other.


How should I deal with RS485 network communication malfunction?


First, check if the wiring of RS485 communication line was loosen or wired incorrectly.(like reversely wiring the A,B terminal).
Next,inspect if the meter’s setting of address, baud rate, check bit was correct by using keypads on the meter.


What if LoRa communication of meters malfunctioned?


First, use USB to RS485 serial converter to connect the meter with computer. Then use adjustment software to check if setting of meter is on consensus with the setting of master station.(setting of channel and spreading factor--SF)
If setting remain the same, then it might be due to large interference of work site or the excessively far range between meter and host. In that case, it’s recommended to use chuck antenna or set a new master station nearby.


What's the difference between ADW300 and ADW300W?


ADW300 has internal current transformers and can select compatible current transformer according to the site current to realized a secondary connection via CTs.
ADW300W on the other hand, has external current transformers.(non-detachable or it will damage the meter) This kind of design extremely ease the wiring and installation if the work-site already has CTs.


What do 3×57.7/100V,3×220/380V,3×380/660V,3×100V,3×380V,3×660V represent respectively?


The meter’s spec of 3*100V,3*57.7/100V is suitable for high voltage power system while pairing with PT(potential transformer or voltage transformer). Beside, 3*100V represent 3-phase 3-wire and 3*57.7/100V represent 3-phase 4-wire.
The meter’s spec of 3*220/380V,3*380/660V,3*380V,3*660V is suitable for low voltage power system(directly connect with meter). Meanwhile,3*380V,3*660V represent 3-phase 3-wire and 3*220/380V,3*380/660V represent 3-phase 4-wire.
