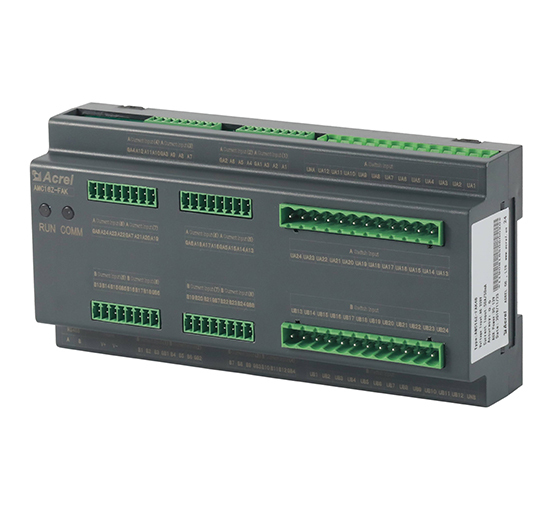

Acrel AMC16Z-FAK48 Multi Channel Din Rail AC Power Meter

Name: AMC16Z-FAK48 Multi Channel Din Rail AC Power Meter
Brand: Jiangsu Acrel Electrical Manufacturing Co., LTD.

Acrel AMC16 precision power distribution monitoring solution is designed to develop a complete set of solutions for the monitoring requirements of precision power distribution cabinets (column cabinets), including AC (AC 220V), DC (DC -48V/240V/336V) systems: It is composed of ≥7-inch touch-type LCD screen, integrated information processing host module, switch state acquisition module, current transformer or Hall sensor acquisition unit module, etc.

Monitoring: AC Outgoing Branch Circuits Multi-metering (1-phase & 3-phase)



Measurement: U, I, F, P, Q, PF and etc


Power Quality: 2nd~31st&Total Harmonic


Communicaiton: RS485 (MODBUS-RTU)


Rated Voltage: AC 220V


Rated Current: AC 50mA with ct


Standard&Certificate: CE; IEC; LVD

Products

Parameters of AMC16Z-FAK48 Multi Channel Din Rail AC Power Meter

Technical Parameter		Value
Distribution System		AC
Measurement of electrical parameters		l, U, P, Q, EP, E Q, S; 2-3rd harmonic
		24 channels on each side (48 in total) 48DI
		RS485
Current	CT	XXA/50mA
	Range	0 〜120%
	Overioad	1.2 times for continuous, and 10 times/second for instantaneous
Frequency		45 〜65Hz
Accuracy		Class 0.2(U/l) Class 0.5(P/EP) Class 1(Q/EQ)
Auxiliary Supply		DC12V
Insulation resistance		100MQ
Environment	Temperature	Operation:-15 C 〜55 'C Storage:-25'C 〜70'C
	Humidity	Relative humidity<93%
	Altitude	<2500m
Communication		RS485(Modbus-RTU)
Installation		DIN 35mm
Switch input		48 DI

Video of Branch Circuit Monitoring

Benefits of AMC16Z-FAK48 Multi Channel Din Rail AC Power Meter

Designed specifically for the power supply management of server in the data center
A+B independent 24 circuits（48 in total）
U, I, P, Q, S, PF, kWh, kvarh
2nd-31st Harmonic
kWh Class 0.5
DIN 35 mm

Features of AMC16Z-FAK48 Multi-Channel Din Rail AC Power Meter

AMC16Z-FAK48 Multi Channel Din Rail AC Power Meter

Dual AC Outgoing Circuits Monitoring A+B Dual-side independent AC Circuits Monitor Full Electrical Parameters Monitoring Outgoing Branch Circuits Multi-metering
Multiple Branch Circuits Metering Both 1-phase&3-phase Metering Max 36 circuits 1-phase Max 12 circuits 3-phase Mixed 8 circuits 3-phase and 12 circuits 1-phase for example
Power Quality Analysis 2nd~31st Harmonic Total Harmonic
Switch On/Off Status Detection A+B Dual Side 48-channel of DI (Digital Input)
