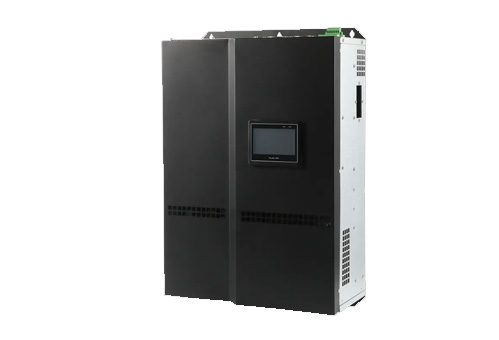

Acrel ANSVG Static Var Generator

Name: ANSVG Static Var Generator
Brand: Jiangsu Acrel Electrical Manufacturing Co., LTD.

ANSVG series of reactive power and harmonic hybrid compensation devices are connected in parallel in the entire power supply system, collect signals through transformers, and control the internal reactive power compensation module and active filter module according to the changes of load power factor and harmonic content in the power grid. power compensation and active filtering.

Products

Video of Static Var Generator

Parameters of ANSVG Static Var Generator

Parameters	ANAPF
Wiring	3P3W or 3P3W
Voltage Input	380V
Frequency	50Hz
Reactive power compensation	The target power factor can be set arbitrarily
Numbers of Harmonic Compensation	2-31st harmonics
Communication	RS485 Modbus-RTU
Protection level	IP30 customizable
Color	RAL7035 customizable
Installation	Indoor installation, fixed method and cable entry method are optional
Working temperature	-10℃-+45℃
Working humidity	40℃：≤50%RH，20℃：≤90%RH
Altitude	＜2000m
