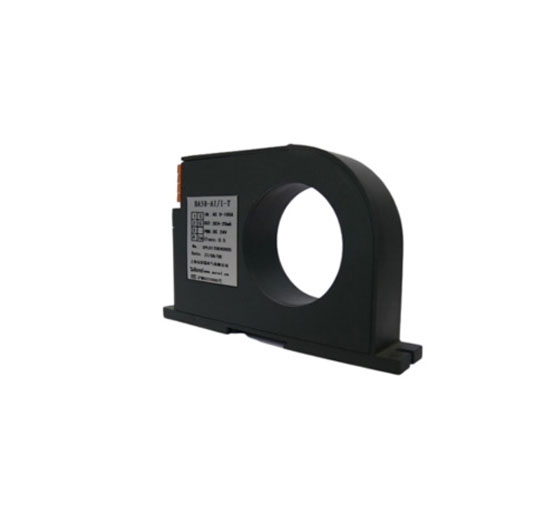

Acrel BA50-AI / I (V) AC 0-600A Current Transducer

Name: BA50-AI / I (V) AC 0-600A Current Transducer
Brand: Jiangsu Acrel Electrical Manufacturing Co., LTD.

Acrel BA series AC Current Transducer apply the principle of electromagnetic induction to measure the AC current in the power grid in real time, and use constant current and linear compensation technology to isolate and convert it into a standard DC signal output.

BA50-AI/I(V) AC 0-600A current transducer converts the measured AC current into a linear proportional output DC voltage or DC current meter, which is widely used in various industrial automation systems.



Input:AC 0-600A


Output:DC 0-20mA/4-20mA/0-5V


Power supply:DC 12V/24V


Aperature:φ50mm

Products

Parameters of BA50-AI / I (V) AC 0-600A Current Transducer

Type	BA50-Al/I(V)
Auxiliary Power	DC 12V/24V
Consumption	≤1W
Through-hole size	Φ50mm
Input Current	AC 0~(60-600)A
Output Nominal value	DC4-20mA ,or 0-20mA,0-5V,0-10V etc
Output Load resistance	Current output≤500Ω,Voltage output≥1kΩ
Accuracy Class	0.50%
Response time	≤350ms
Temperature	Operation:-10 to +55℃ Storage:-25 to+70℃
Temperature coefficient	≤200ppm/℃
Installation	(Rail)DIN35, fix on cubicle with screws
Standards	GB/T13850 CE

Video of 600A Current Sensor

Installation of BA50-AI / I (V) AC 0-600A Current Transducer

Screw fixing installation:

On the bottom plate of the cabinet, select a suitable position to open two threaded holes corresponding to the positions of the fixed holes for the installed sensor; after placing the sensor, install the positioning screws.

Rail Mounting:

Choose a suitable location to install the standard DIN35mm rail, and install the BA sensor on the rail.

Installation of BA50-AI / I (V) AC 0-600A Current Transducer

Application of BA50-AI / I (V) AC 0-600A Current Transducer

Industrial automation field
Photovoltaic and wind power industry
Metallurgy, Electric Power, Oil Field
Railway locomotives, Shipping Industry

Order example of BA50-AI / I (V) AC 0-600A Current Transducer

Specific model: BA50-AI/I
Technical requirements: Input current AC 0-600A; Output DC 4-20mA; perforation φ10mm; accuracy Class 0.5.
Communication protocol: none
Auxiliary power supply: DC 24V
