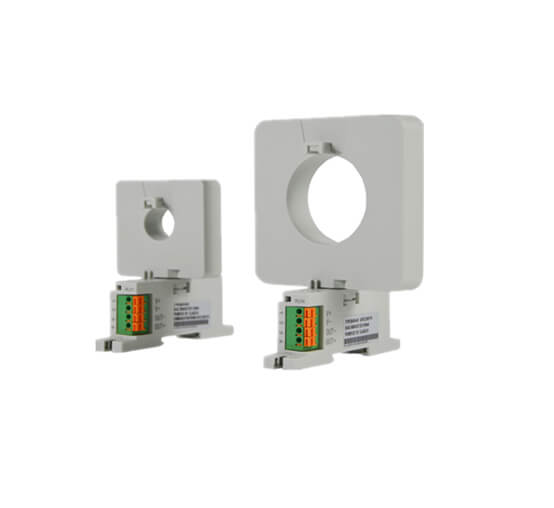

Acrel BA50L (II)-AI / I (V) Split Type AC 0-600A Current Sensor

Name: BA50L (II)-AI / I (V) Split Type AC 0-600A Current Sensor
Brand: Jiangsu Acrel Electrical Manufacturing Co., LTD.

Acrel intelligent BA series current sensor applies the principle of electromagnetic induction to measure the AC current in the power grid in real time, and adopts constant current and linear compensation technology to isolate and convert it into a standard DC signal output, or through the RS485 interface (Modbus-RTU protocol) Transmit measurement data.

BA50L (II)-AI / I (V) Split Type AC 0-600A Current Sensor is an AC residual current transformer,use DC24V or 12V safe voltage power supply, can be widely used in the field of industrial automation. which mainly detects the leakage current of the power system, and can grasp the condition of the electrical circuit and equipment at any time to prevent accidents such as fire caused by leakage.



Input:AC 0-1A leakage current


Output:DC 0-20mA/4-20mA/0-5V


Optional function:RS485,Split installation


Aperature:φ50mm

Products

Parameters of BA50L (II)-AI / I (V) Split Type AC 0-600A Current Sensor

Type	BA50L (II)-AI / I (V)
Auxiliary Power	DC 12V/24V
Consumption	≤1W
Through-hole size	Φ50mm
Input Current	AC 0～(0.1～1)A
Output Nominal value	DC4-20mA ,or 0-20mA,0-5V,0-10V etc
Output Load resistance	Current output≤500Ω,Voltage output≥1kΩ
Accuracy Class	Class 0.5
Response time	≤400ms
Temperature	Operation:-10 to +55℃ Storage:-25 to+70℃
Temperature coefficient	≤200ppm/℃
Installation	TS35 rail, or use screws to fix the cabinet
Communication	RS485 interface/Modbus-RTU
Frequency response	25Hz～800Hz, especially suitable for industrial frequencyoccasions

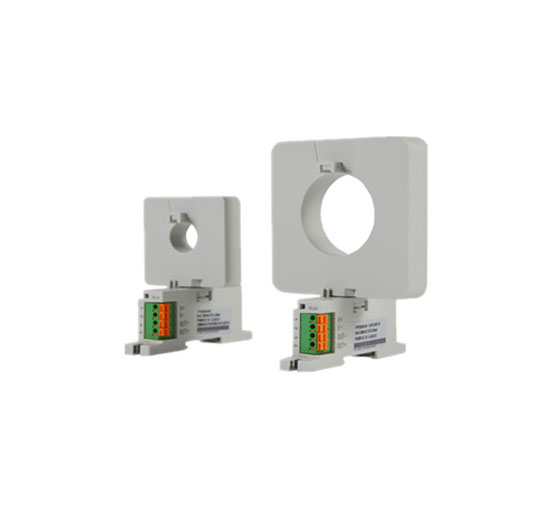

Video of Split Core AC Current Sensor

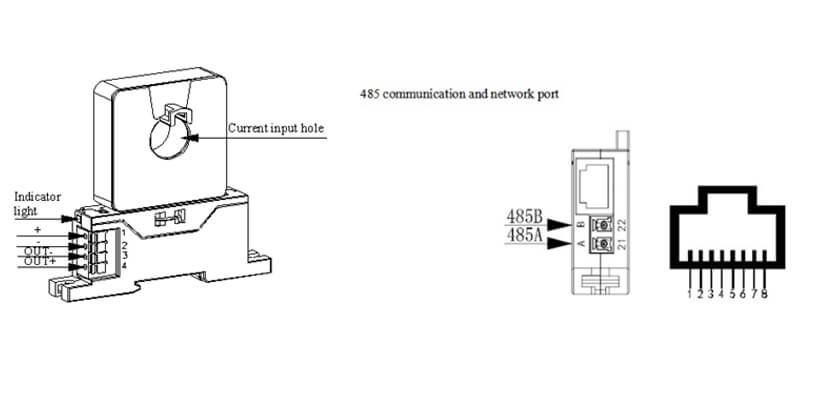

Diagram of BA50L (II)-AI / I (V) Split Type AC 0-600A Current Sensor

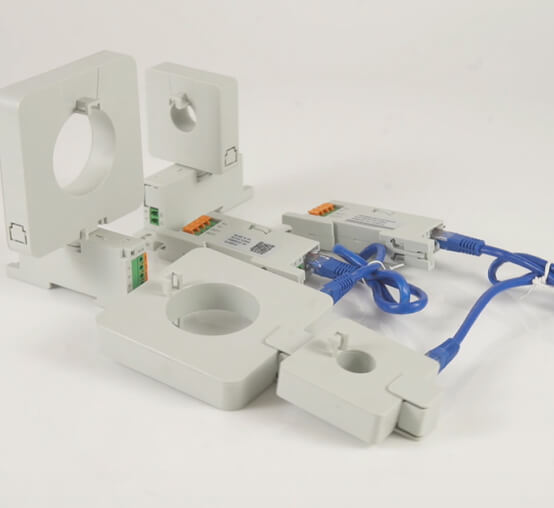

BA50L (II)-AI / I (V) Split Type AC 0-600A Current Sensor has two installations

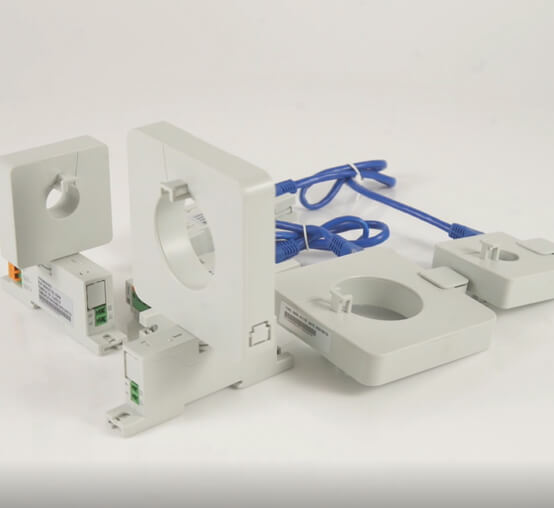

Integrated installation: a rotating structure can be used in the perforated part.There are Φ20, Φ50 of hole sizes for your selection.The main body could be connected to the display screen in order to display current and set parameters when integrated installation ( use existing display screen as far as possible).

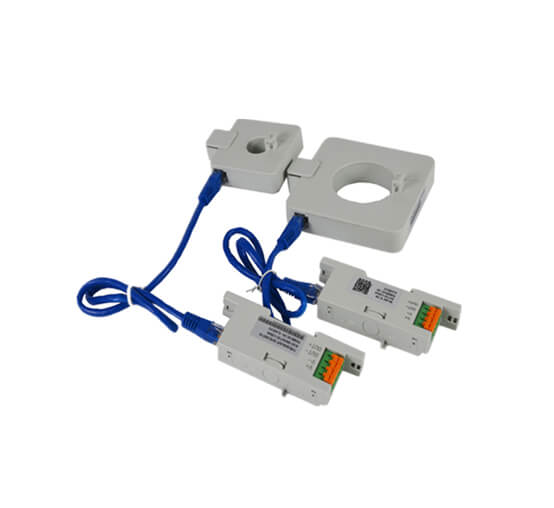

Split-type connection:the current transformer is connected to the main body through network cable.TS3 din-rail mounting, or fix it on the cabinet with screws.

Diagram of BA50L (II)-AI / I (V) Split Type AC 0-600A Current Sensor

Application of BA50L (II)-AI / I (V) Split Type AC 0-600A Current Sensor

Industrial automation Leakage monitoring
Insulation monitoring of electrical lines or electrical equipment
Cement Building,Petrochemical Industry
Iron and Steel Metallurgy,Rail Traffic

Package of BA50L (II)-AI / I (V) Split Type AC 0-600A Current Sensor

MINIMUM PACKAGE
MINIMUM PACKAGE	Package dimensions(1 PC)	Package Weight(1 PC)
	1612.57.5cm	0.26Kg
WHOLE BOX PACKAGE	Package dimensions(25 PCS)	Package Weight(25 PCS)
	45.52619.5cm	7.5kG
PRODUCT HS CODE	9030339000
