Name: DTSD1352-C Solar Inverter Sungrow Smart Meter
Brand: Jiangsu Acrel Electrical Manufacturing Co., LTD.

Acrel sungrow smart meter DTSD1352 din rail type multi-function energy meter is an intelligent instrument designed mainly for energy statistics and management needs of power systems, industrial and mining enterprises, and public facilities. Integrate common power parameter measurement and power metering and assessment management, and provide various power data statistics for the past 48 months. DTSD1352 has 2~31 times sub-harmonic and total harmonic content detection, with switch input and switch output, it can realize "remote signal" and "remote control" functions, and has alarm output.

DTSD1352-C Solar inverter smart meter is designed for PV solar system, which already have configued with several inverter like sungrow, solis etc. It can be directly used together with these inverter through RS485 communication. realize the measure and monitor function.



Current Input: AC 80A,1(6)A


Voltage Input: AC 3*230/400V


Accuracy: Class 0.5


Suitable for: Sungrow/Solis inverter

Products

Acrel DTSD1352-C Solar Inverter Sungrow Smart Meter Parameters

Type		DTSD1352-C
Voltage	Reference voltage	357.7/100V, 3220/380V, 3100V, 3380V
	Reference frequency	50Hz
	Consumption	<10VA(Single phase)
Current	Maximum current	6A,80A
	Starting current	Direct connect: 0.004lb; Connect via: 0.001ln
	Consumption	<1VA(Single phase rated current)
Measurement performance	Accuracy	Class 0.5
Measurement performance	Standards compliant	IEC 62053-22: 2003
Pluse	Pluse width	80+20 ms
Pluse	Pluse constant	400imp/kWH, 6400imp/kWH
Communication	Interface	RS485
Communication	Protocol	Modbus-RTU
Outling	LWH(mm)	126.58869.5
Temperature range	Work	-25℃~55℃
Temperature range	Storage	-40℃~70℃
Humidity	≤95%(No condensation)	≦95% (No condensation)
Altitude	<2000m	<2000m

Acrel DTSD1352-C Solar Sungrow Inverter Smart Meter Video

Wiring of Acrel DTSD1352-C Solar Inverter Smart Meter

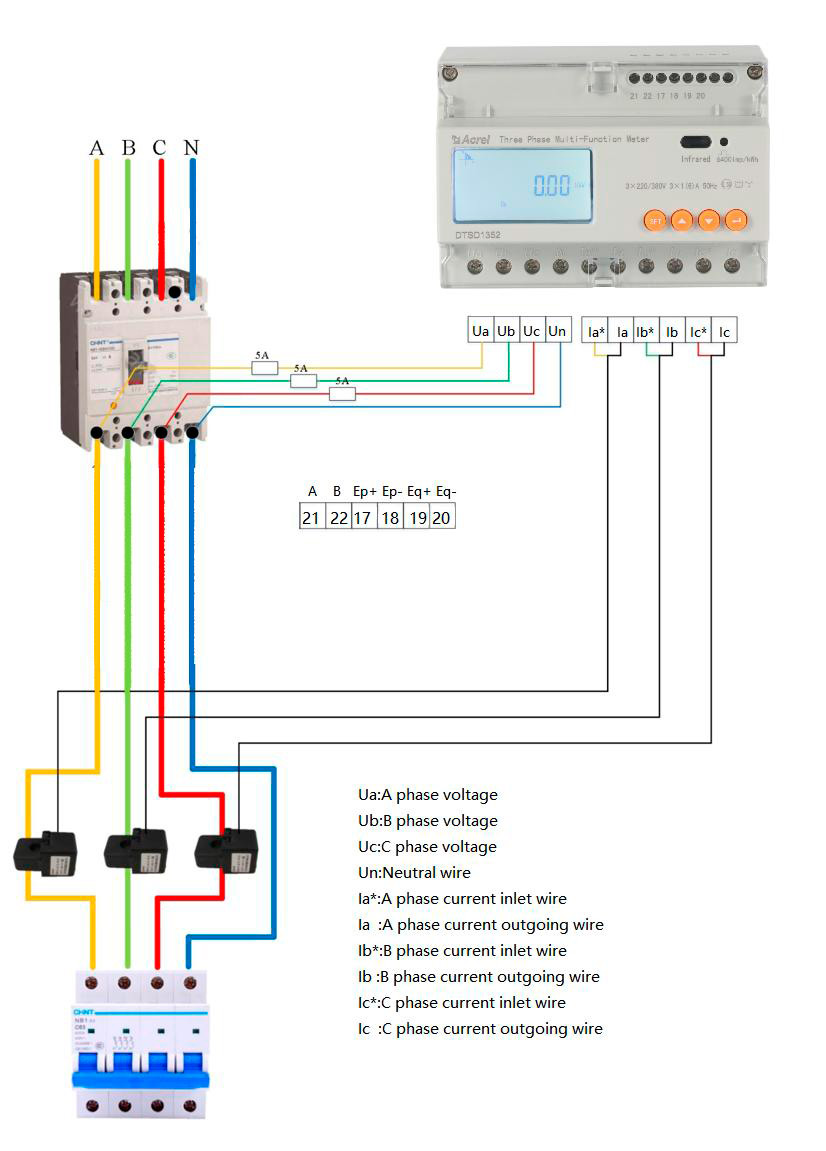

DTSD1352-C Solar inverter smart meter interface Ua/Ub/Uc is A/B/C phase voltage input, interface N is the neutral wire, interface Ia*/Ia is A phase current inlet/outgoing wire, interface Ib*/Ib is B phase current inlet/outgoing wire, interface Ic*/Ic is C phase current inlet/outgoing wire, interface 21/21 is RS485 A/B, interface 17/18 is Active energy,19/20 is reactive energy.

Wiring of DTSD1352-C Solar Inverter Smart Meter
