Application of Acrel Programmable Power Meter in Lao PDR

This article introduces the application of the multi-function energy meter in a project in Lao PDR. AMC series AC multi-function meter is a smart meter designed for power monitoring needs of power systems, industrial and mining enterprises, utilities, and intelligent buildings.

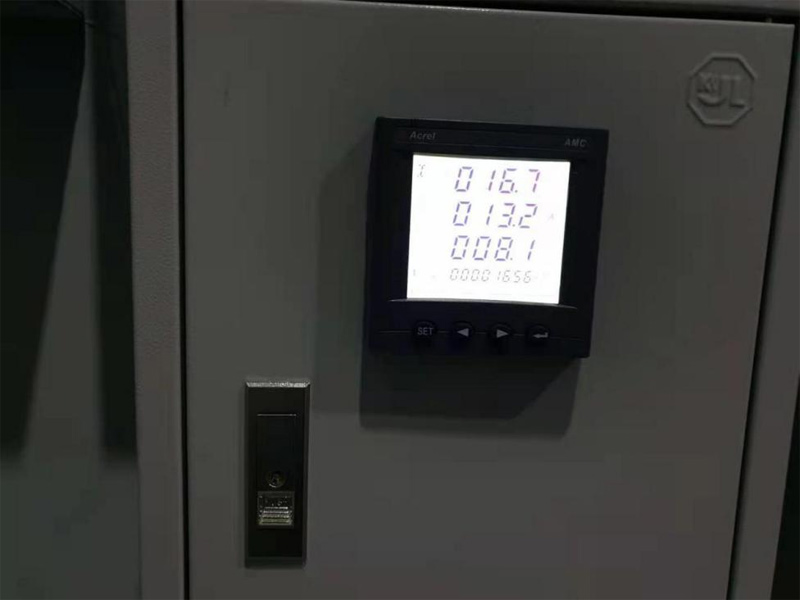

1. Project Overview

A project in Lao PDR required a batch of multi-function and programmable power meters. After comparing various aspects, Denmark customers thought that our AMC series programmable power meters are rich in functions, easy to install, and cost-effective, so they decided to use our power meters.

2. product presentation

AMC series meters integrate the measurement of full-electric parameters, such as single-phase or three-phase current, voltage, active power, reactive power, apparent power, frequency, power factor. It also has functions of energy statistics, event records, harmonic measurement and network communications.

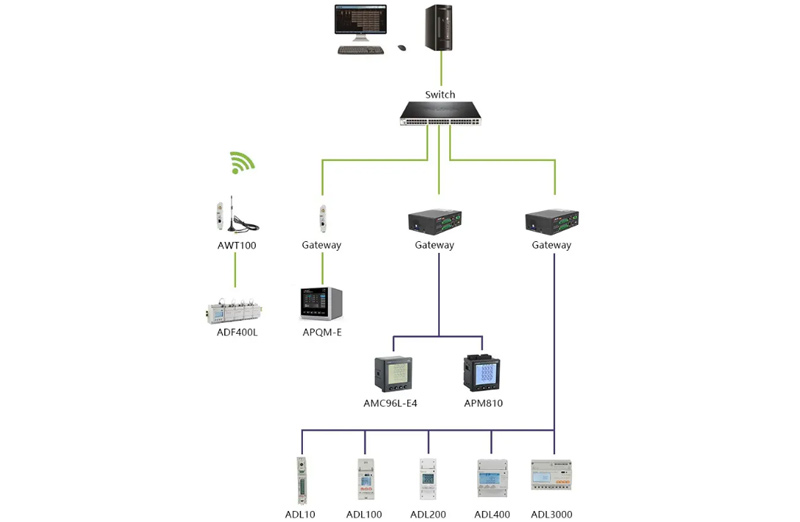

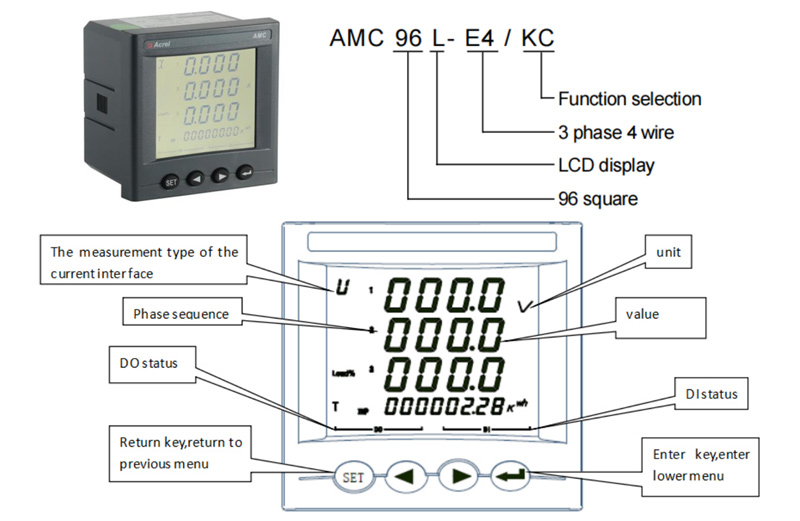

3. Model Description

Application of Acrel Programmable Power Meter in Lao PDR

4. Function

Type

Function

Optional

Option Group

AMC96L-E4/KC

Three-phase power meter

Display: LCD

I, U, kW, kvar, KVA, kWh, kvarh, Hz, cos中

4DI2DO

1Ep pluse output

/H: THDi, THDu, 2-31st harmonic

/SOE: Event record

/2M: 2 analog output

(When 2M is selected, the switching function is 2DV2DO)

H+SOE+2M

5. Technical Parameters

Technical Parameter		Value
Input	Connectio	3 phase 4 wire
	Frequency	45~65Hz
	Voltage	Rating: AC 100V,400V
		Overload: 1 2 times rated value(continuous); 2 times rated value(1 second)
		Power consumption: < 0.5VA
	Current	Rating: AC 1A,5A
		Overload: 1.2 times rated value(continuous); 10 times rated value (1 second)
		Power consumption: < 0.5VA
Output	Energy	Pulse width: 80±20ms
	Energy	Pulse constant: 10000, 40000, 160000 imp/kWh
	Communication	RS485(Modbus-RTU)
Function	Switching input	2 channels or 4 channels passive contact input mode
	Switching output\|	Output mode: 2 channel relay NO contact output
	Analog output	Contact capacity: 3A/30V DC, 3A/250V AC, 0~5V,0~20mA, 4~ 20mA programmable
Accuracy		Frequency: 0.05Hz, current, voltage: class 0.2, reactive power: class 1.0, reactive energy: class 1.0, other: class 0.5, 2~31st harmonic±1%
Auxiliary power supply		AC/DC 85~265V
Power consumption		≤10VA
Insulation resistance		≥100MQ
Environment	Temperature	Operating: -10°C~+55°C Storage: -25°C ~+75°C
	Humidity	≤93%(no condensation)
	Altitude	S2500m
