How to choose a right Data Center Monitor Module?

It depends which and how many circutis do you need monitor,ac or dc,input line or output line.

What is data center monitor?

Data center monitoring is mainly for the centralized monitoring of power equipment and environment in the computer room, such as power distribution, UPS, air conditioning, video, flooding, smoke detection, etc. We are mainly for the monitoring of power distribution systems.

How can we do when the incoming line current is overloaded and alarm in data center?

Check communications, set alarm value, set ct ratio, clamp meter to test the actual current.

Acrel Monitoring Data Center, Data Center Temperature Monitoring System



Acrel data center power distribution system solution is to improve the power efficiency of the data center and reduce the energy consumption of equipment. First of all, monitor each electrical load, and there are many load loops in the data center. Traditional measuring instruments cannot meet the requirements of cost, volume, installation, construction and other aspects. Therefore, it is necessary to adopt AMC Series Data Center Monitor Module suitable for the centralized monitoring requirements of the data center device.

Products

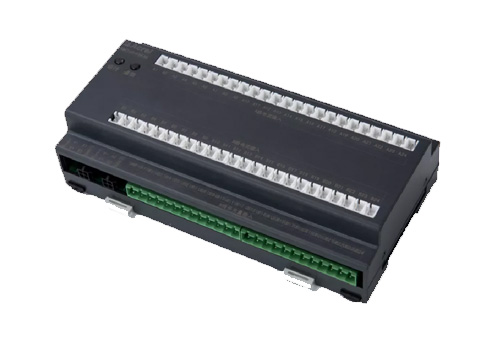

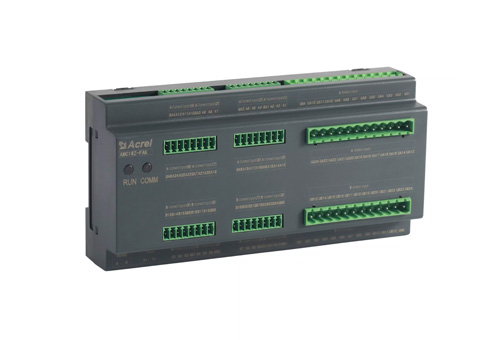

AMC Series Data Center Monitor Module For Sale

This series of products has a compact design, adapts to the characteristics of many load circuits in data centers, realizes high integration of monitoring circuits, and can accurately monitor each AC or DC load in the data center.

AMC Series Data Center Monitor Module Data Sheet

Type Model	Function description
AMC16Z-ZA	Monitor the full power parameters of A+B double-way three-phase AC incomingcircuit,6-way switch state monitoring,2-way alarm output,2-way leakagemonitoring, 1-way temperature and humidity detection,1-way RS485communication, and phase-sequence detection.
AMC16Z-FA	Monitor the full power parameters of 24 branches of A+B double-way ACoutgoing line,1-way RS485 communication and phase adjustment.
AMC16Z-FAK24	Monitor the full power parameters and switch state of 24 branches of A+Bdouble-way AC outgoing line,1-way RS485 communication and phaseadjustment.
AMC16Z-FAK48	Monitor the full power parameters and switch state of 48 branches of A+Bdouble-way AC outgoing line,1-way RS485 communication and phaseadjustment.
AMC16Z-KA	Wet contact,monitoring A+B total 48 branch switch state,1-way RS485communication.
AMC16Z-KD	Dry contact,monitoring A+B total 48 branch switch state,1-way RS485communication.
AMC16Z-AC220V	AC220V extended power supply,and use when the monitoring circuit is beyond 96 branches of A+B
AMC100-ZA	Monitoring the full power parameters of the A+B dual three-phase AC incoming circuit, 8 switching status inputs, 4 switching status outputs, 2 leakage monitoring, 1 temperature and humidity detection, 3 RS485 communications
AMC100-FAK30	Monitor the full power parameters and switch status of a total of 30 branches of A+B dual AC outlets, and 1 RS485 communication
AMC100-FAK48	Monitor the full power parameters and switch status of a total of 48 branches of A+B dual AC outlets, and 1 RS485 communication
AMC100-FA30	Monitor the full power parameters of a total of 30 branches of A+B dual AC outlets, and 1 RS485 communication
AMC100-FA48	Monitor the full power parameters of a total of 48 branches of A+B dual AC outlets, and 1 RS485 communication
AMC100-KA30	Wet contact, monitor the switching status of 30 branches A+B, 1 RS485 communication
AMC100-KA48	Wet contact, monitor the switching status of 48 branches A+B, 1 RS485 communication
AMC100-KD30	Dry contact, monitor the switching status of 30 branches A+B, 1 RS485 communication
AMC100-KD48	Dry contact, monitor the switching status of 48 branches A+B, 1 RS485 communication
AMC100-FT30	1 way RS485 communication, 30 way temperature measurement
AMC100-FT48	1 way RS485 communication, 48 way temperature measurement

Why it is important for A Data Center Monitoring System?

With the rapid development of data centers, the energy consumption of data centers has become more and more prominent, and the energy management and power supply and distribution design of data centers have become hot issues.

Acrel AMC series AC precision power distribution monitoring device is a measurement device specially designed for data center server power management. The device is compact in design, and can monitor all electrical parameters, input and output switches, and lightning arrester status of A+B two incoming lines and 96 outgoing lines in real time. The alarm thresholds of all measurement channels can be set independently. The limited event immediately triggers the sound and light alarm of the system, which realizes a high degree of integration of the monitoring loop in the volume of the traditional instrument.

AMC Series Data Center Monitor Module FAQs



What a Data Center Monitor Module do in data center?


Real-time monitoring of all electrical parameters, input and output switches and lightning arrester status of A+B two incoming lines and 96 outgoing lines.


How to choose a right Data Center Monitor Module?


It depends which and how many circutis do you need monitor,ac or dc,input line or output line.


What is data center monitor?


Data center monitoring is mainly for the centralized monitoring of power equipment and environment in the computer room, such as power distribution, UPS, air conditioning, video, flooding, smoke detection, etc. We are mainly for the monitoring of power distribution systems.


How can we do when the incoming line current is overloaded and alarm in data center?


Check communications, set alarm value, set ct ratio, clamp meter to test the actual current.
