Acrel-2000MG Microgrid Energy Management System (EMS)


The Acrel 2000MG platform is an efficient enterprise microgrid energy management system that integrates real-time monitoring, energy consumption analysis, intelligent forecasting, coordinated control, and economic dispatch. By precisely managing resources such as photovoltaics and energy storage, it enhances green energy utilization and economic efficiency, reduces grid impact, and achieves optimal matching between energy production and consumption within the microgrid. This platform empowers enterprises to lower energy costs, improve power reliability, and enhance energy management efficiency.

Solution Structure of Acrel-2000MG Microgrid Energy Management System


Benefits of Acrel-2000MG Microgrid Energy Management System


All System Management Acrel-2000MG could integrate and manage with all type of power system like ESS, Solar PV, Wind Power, Diesel Generator, EV Charger, traditional Grids and etc.
Peak-Valley Arbitrage By using the energy management and control plan of Acrel-2000MG, we could realize peak shaving & valley filling energy usage strategy for peak-valley arbitrage. Benefit of peak-valley arbitrage could be check in Acrel-2000MG energy magament system.
Power Demand Control Acrel-2000MG could set a power demand threshold and manage all the power system in micro-grids so that the overall loads power demand won't exceed this limitation value. No extra fine happend due to exceeding the power demand.
Back-up Power Source Acrel-2000MG EMS system could set the plan for back-up power source to prevent the influence of unpredicatable power outage.

Software Overview of Acrel-2000MG Microgrid Energy Management System


System Homepage Homepage include a general view of site actual micro-grids power system situation. Energy consumption situation, carbon dioxide emisstion info, profit gain from control plan and new energy, weather station infor, power curve and etc.
Profit Analysis Analysis about how much profit gained from peal-valley arbitrage strategy, new energy power generation profit and etc.
Visualized Operation Providing topology according to actual site situation. Real-time data and status for you to realize a simple and visualized maintanence.monitoring&alarm and etc.
Solar PV Monitoring General monitoring for solar PV system including solar PV power generation and profit gained by it. Weather station infomation, voltage&current&power curve and etc.Grid-connected power quality monitoring and analysis
Wind Power Monitoring General monitoring for wind power system including wind power generation and profit gained by it. Weather station infomation, voltage&current&power curve and etc.Grid-connected power quality monitoring and analysis.
ESS Monitoring General monitoring for ESS energy storage system including charging&discharging power, energy, status information. Also, the SOC cruve, PCS&BMS status could be all checked in Acrel-2000MG. Also, the opeartion mode could be changed between peak-valley mode, scheduled curve, demand control, etc
EV Charger Monitoring General monitoring for EV charger including charging energy, profit gain by EV charger. Also, the detail working status, voltage, current, charging amount of each EV charger could be checked.
Power Quality Analysing Continuously monitor the power quality and reliability status of power system, including steady-state data such as voltage harmonics, voltage flicker, and voltage imbalance, as well as transient data like voltage sags/swells, voltage interruptions, and transient voltage data. Perform monitoring, analysis, and waveform recording of these parameters, and also monitor transient voltage and current events.

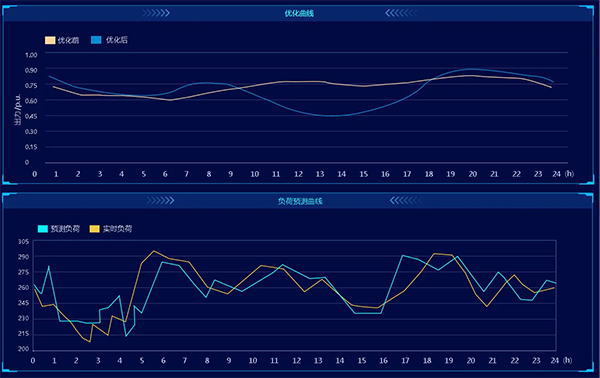

Optimized Power Control Acrel-2000MG could set various control plan to realize optimized power operation for saving your money and make profit. Such as peak-valley arbitrage, max demand control and etc

Hardware Overview of Acrel-2000MG Microgrid Energy Management System

Product Picture	Name&Model	Technical Description
	ANET Seires IoT Gateway	The ANET series IoT gateway utilizes an embedded hardware computing platform and features multiple downstream communication interfaces and multiple upstream network interfaces. It is designed to aggregate and organize communication data from all intelligent monitoring/protection devices within a target area and upload it in real-time to the master station system. This setup completes the functions of remote signaling and remote measurement for energy data collection.








	ADL3000-E Series 3-phase DIN-rail Multi-function Energy Meter	The ADL3000-E is an intelligent electric meter specifically designed for power supply systems, industrial and mining enterprises, and utility companies. It is used to calculate electricity consumption and manage electrical demand. Key features include high accuracy, compact size, and easy installation. The device integrates measurement of all electrical parameters and comprehensive power metering management, providing data for the past 12 months. It can check the content of up to 31 harmonics and total harmonic distortion. Remote communication and control are enabled through digital inputs and relay outputs, and it also features alarm outputs. The ADL3000-E is suitable for various control systems, SCADA systems, and energy management systems. All instruments comply with the relevant technical requirements of IEC62053-21 and IEC62053-22 standards for power meters.










	AM5SE Series Medium-voltage Protection Relay	The AM5SE series microcomputer protection and control devices integrate protection, control, measurement, communication, and monitoring functions into one unit. They feature rich resources, comprehensive configuration, easy maintenance, and stable performance, making them suitable for protection and control of power systems with voltage levels of 35kV and below. These devices provide protection for incoming lines, main transformers, distribution transformers, motors, capacitors, bus couplers, and PTs. The application areas include power, water conservancy, transportation, petroleum, chemical, coal, metallurgy, and new energy industries.

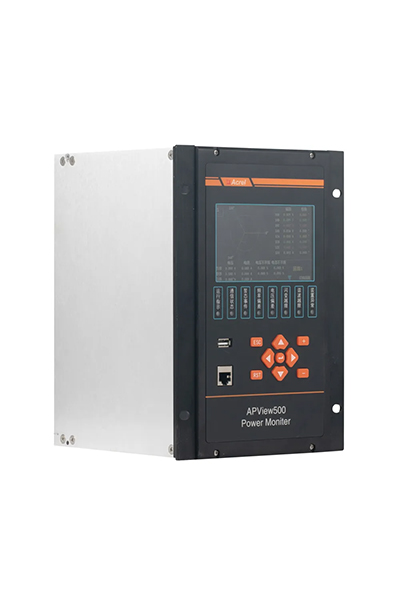

	APView500 Seires Power Quality Analyser	Utilizing a high-performance multi-core platform and an embedded operating system, it adheres to the measurement methods for power quality indicators specified in IEC61000-4-30 and follows the IEC61000-4-15 standard. The system integrates functions such as harmonic analysis, waveform sampling, voltage sag/swell/interruption monitoring, flicker monitoring, voltage imbalance monitoring, event recording, and measurement control into one unit.

Project Study of Acrel-2000MG Microgrid Energy Management System


	Project Case 1: Micro-grid [Solar PV&ESS&EV Charging&Grids] Energy Management&Control Project in a Tobacco Company This project involves the implementation of a solar, storage, and charging system for a tobacco company. The aim is to fully utilize solar energy to achieve green power usage, ensuring the safe operation of photovoltaic (PV), storage, and charging systems, while reducing electricity costs.








	Project Case 2: Solar PV, Energy Storage and EV Charger Management Project for a Tobacco Company The solar and storage project at a monastery in Myanmar aims to fully utilize solar energy resources to achieve green electricity usage while ensuring the safe and stable operation of the photovoltaic (PV), storage, and grid systems. This project not only helps reduce electricity costs but also improves energy utilization efficiency.
